R5 Pro - Term - Carbon Road Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm

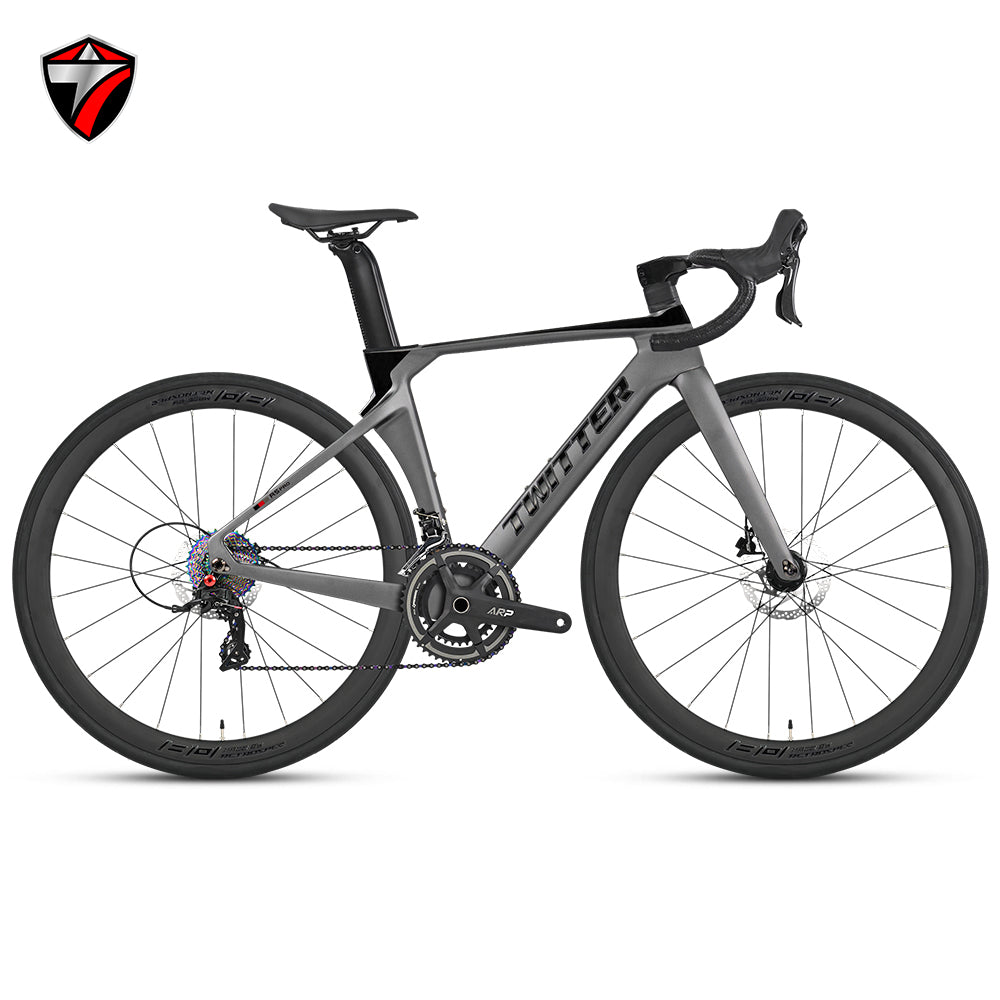

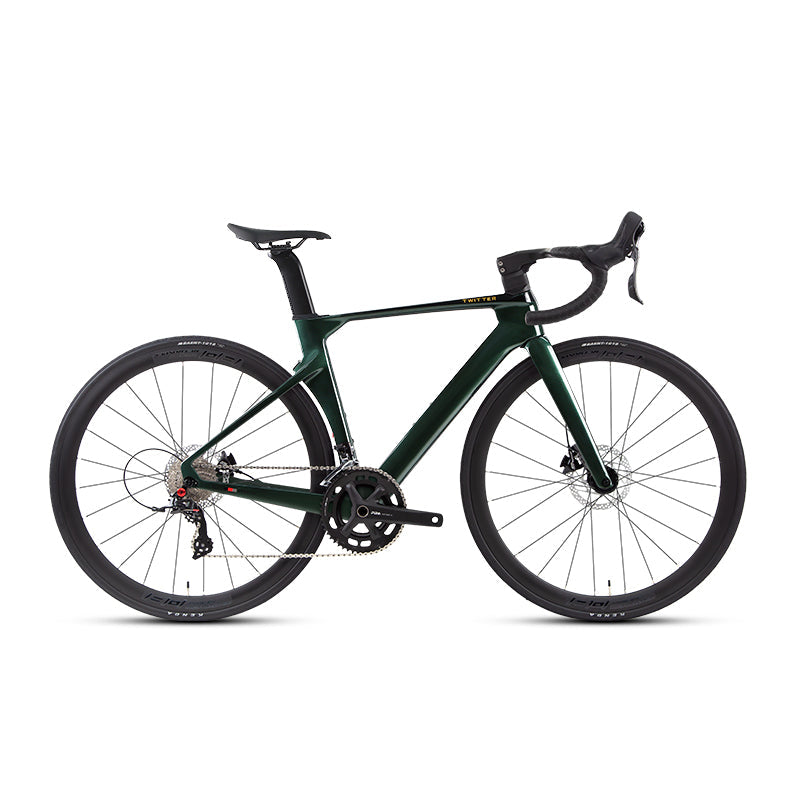

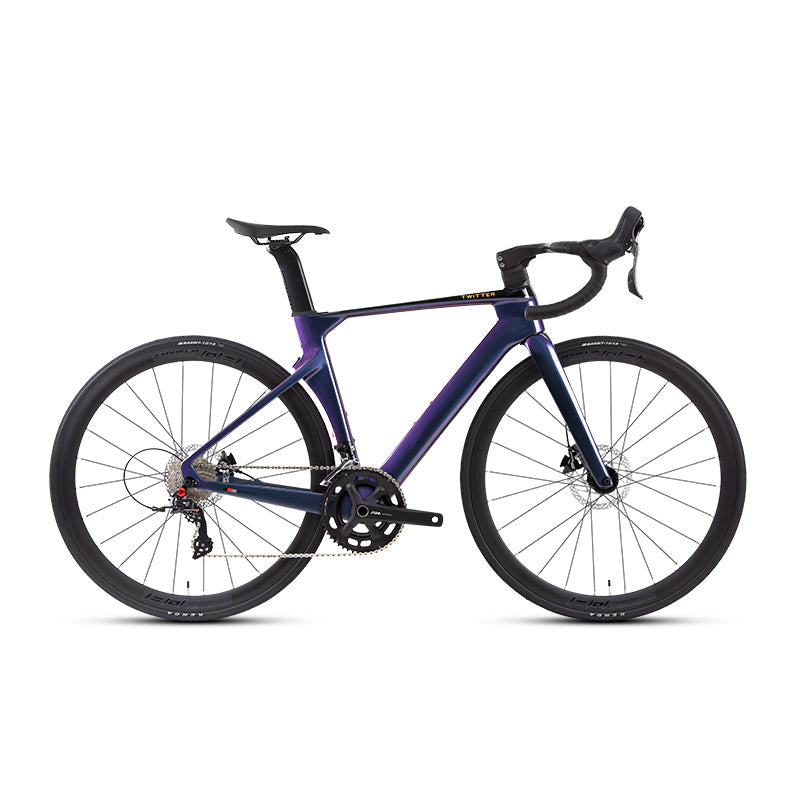

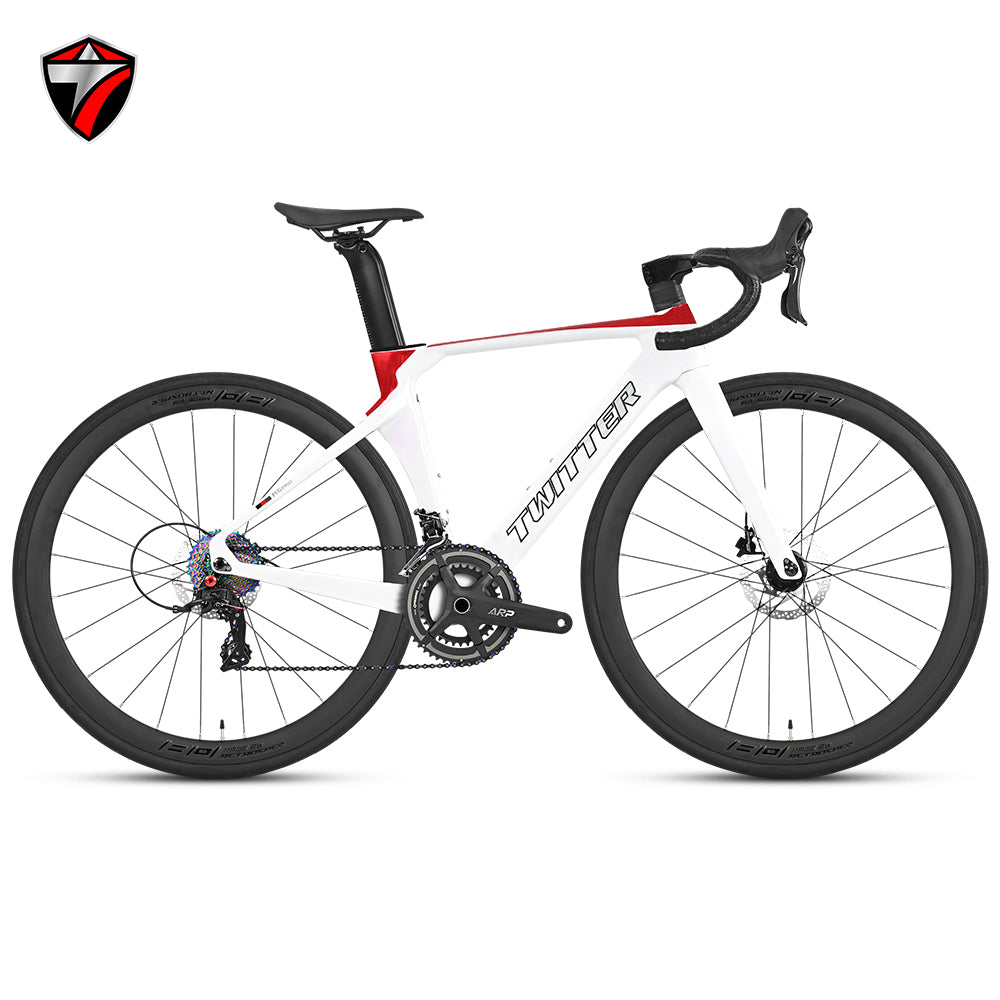

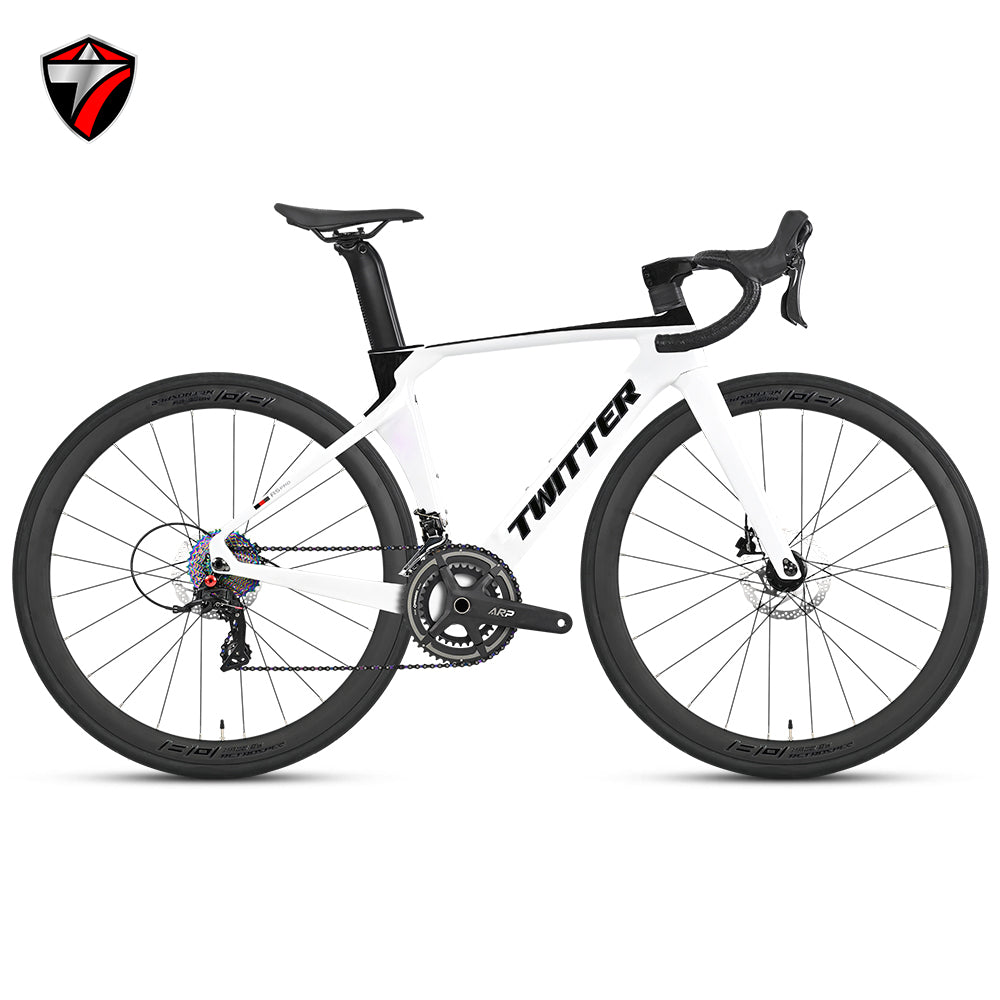

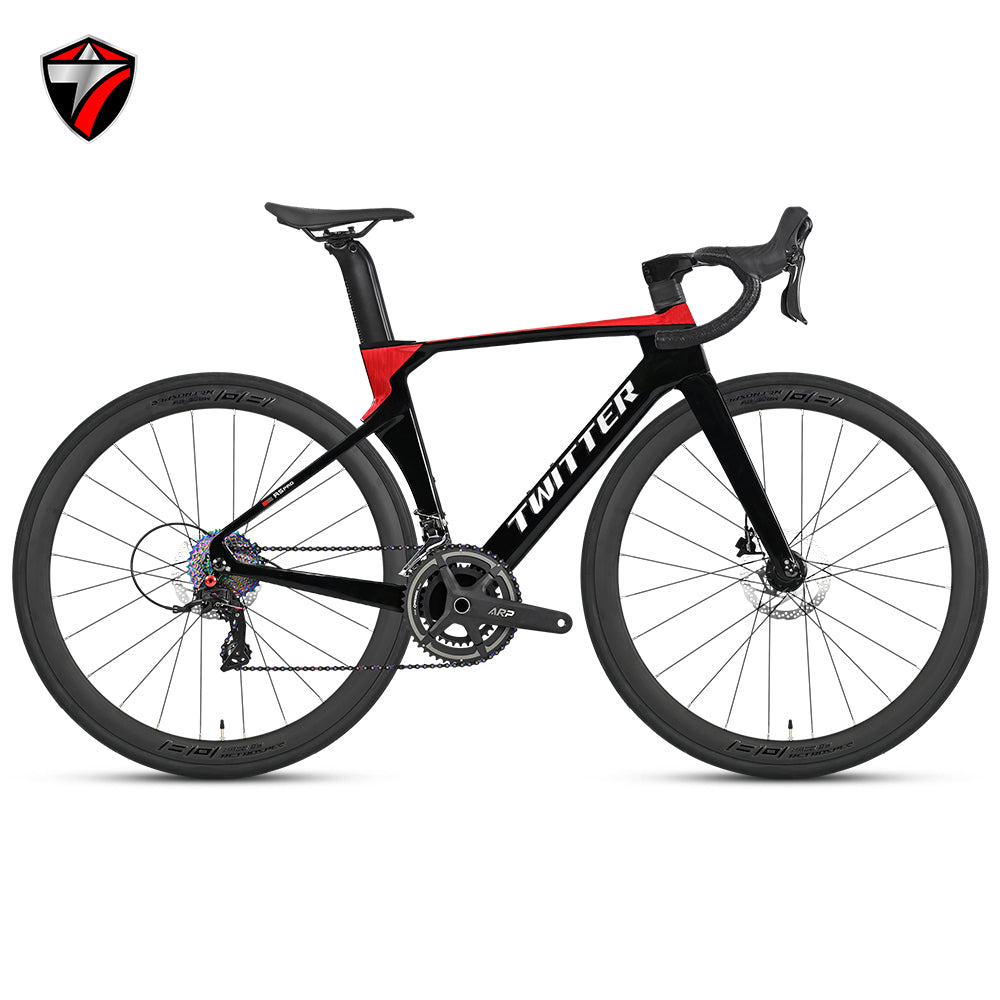

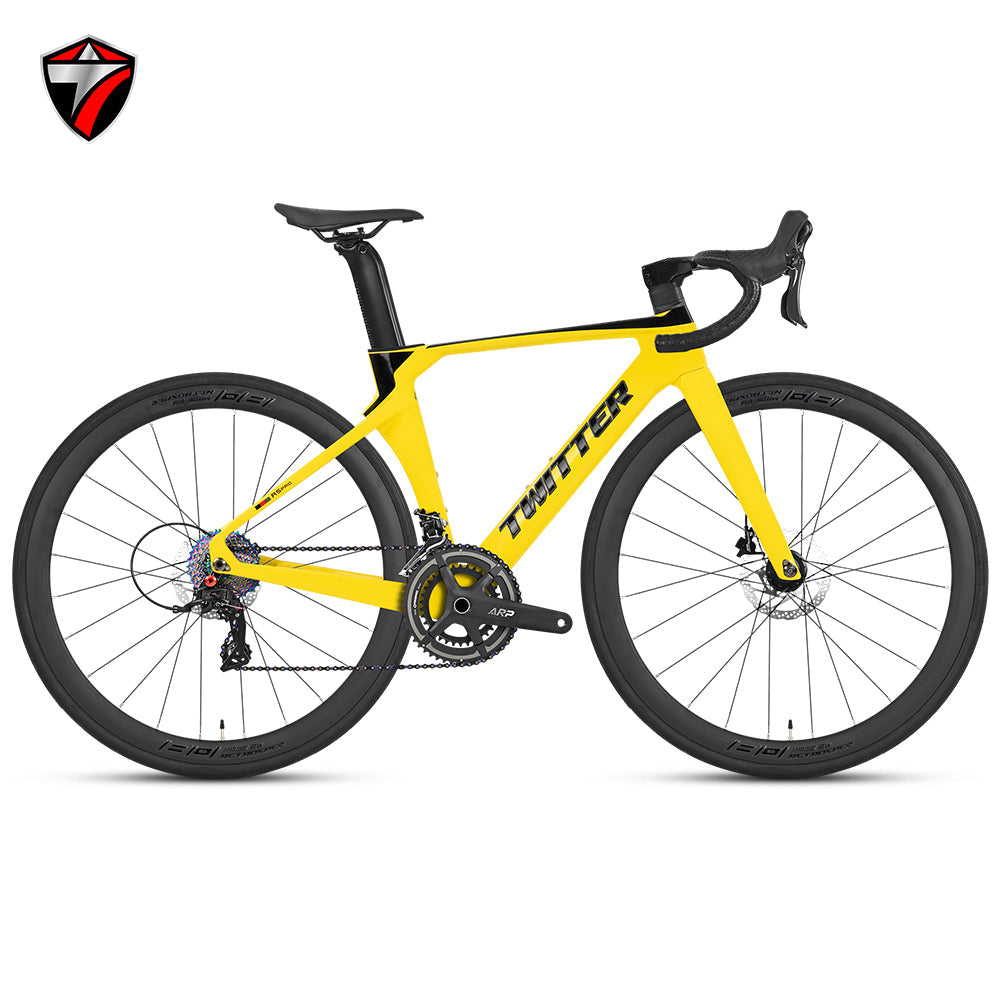

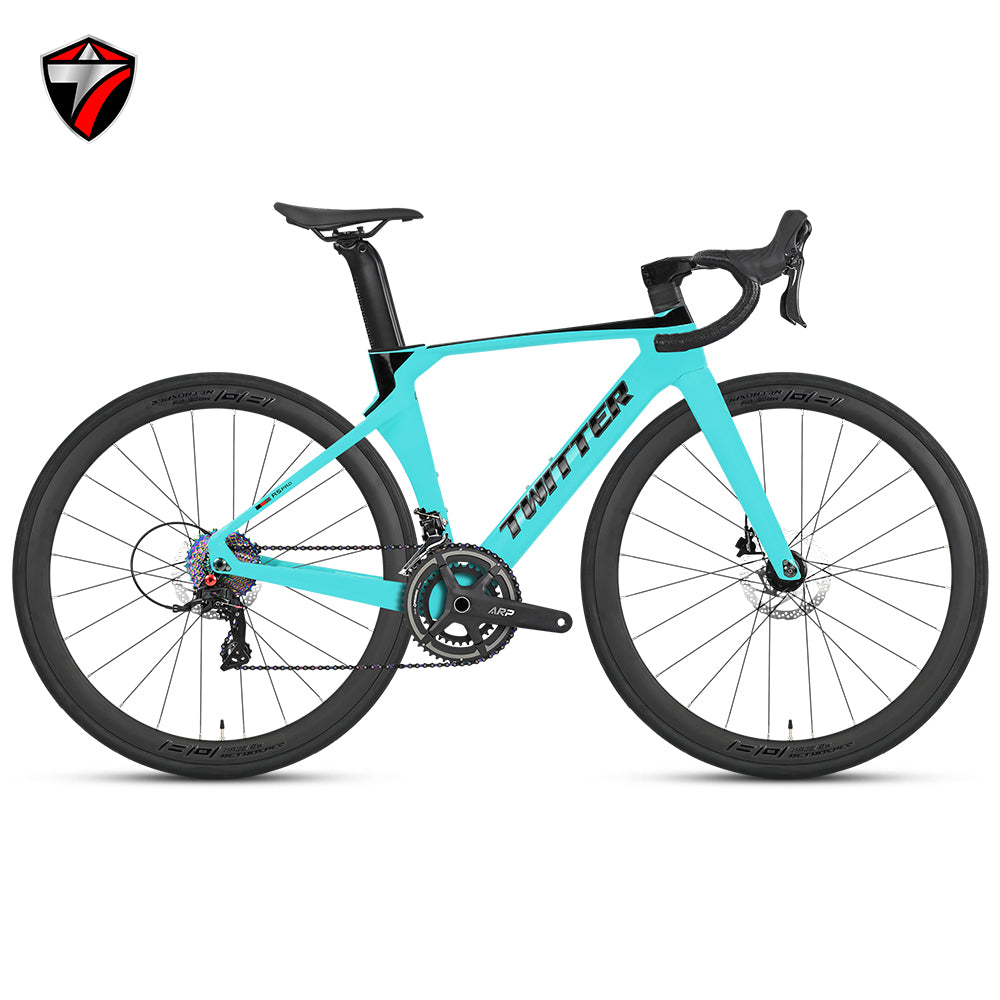

• Colors: White/Black / White/Red / Black/Red / Matte Black / Matte Gray / Yellow / Others / Full Holographic
• Weight: 9.3 kg (all variants)

Frame & Structure

• Frame: R5pro (Disc & Thru-Axle 12×142), high modulus carbon fiber, Aero-Racing geometry with internal cable routing
• Fork: R5pro (Disc & Thru-Axle 12×100), high modulus carbon fiber, 700C
• Seat Post: High modulus carbon fiber, Aero-Racing design
• Handlebar: TW 3K carbon fiber integrated handlebar & stem (420×90 mm), full internal cable routing
• Clamps: Hidden screw fit to frame
• Headset: CNC aluminum alloy with sealed bearings (52×52 mm)
• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
• Washer: Special for internal cable routing

Drivetrain Options

Variant 1 – RS (SENSAH) 2×12-Speed Hydraulic, Alloy Wheel

• System: RS-24S (2×12-speed, hydraulic)
• Shifters: SENSAH HRD6900-R (2×12-speed)
• Front Derailleur: SENSAH Z2 (2-speed)
• Rear Derailleur: SENSAH RD8500-GS (12-speed)
• Crankset: Prowheel ARP aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 12-speed, 11–32T
• Chain: SUMC 12-speed
• Brakes: SENSAH HRD-G100 hydraulic disc (160 mm front / rear)

Variant 2 – WheelTop TX (2×12-Speed Wireless Hydraulic, Alloy Wheel)

• System: WheelTop TX 24S (2×12-speed, wireless & hydraulic)
• Shifters: WheelTop EDS TX (2×12-speed, wireless & hydraulic)
• Front Derailleur: WheelTop EDS TX (2-speed, wireless)
• Rear Derailleur: WheelTop EDS TX (12-speed, wireless)
• Crankset: Prowheel ARP aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 12-speed, 11–32T
• Chain: SUMC 12-speed
• Brakes: WheelTop hydraulic disc (160 mm front / rear)

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, slotted, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
• Rims: RS aluminum alloy AL7005, double wall, W21×H38 mm, 700C
• Spokes: SHUNJIU circular 14G
• Tires: INNOVA 700×28C, black

Braking System

• RS Variant: SENSAH HRD-G100 hydraulic disc, 160 mm front / 160 mm rear
• WheelTop Variant: WheelTop hydraulic disc, 160 mm front / 160 mm rear

Additional Components

• Belt: PU material, comfortable & skid-resistant
• Saddle: Lightweight and comfortable racing design
• Pedals: Lightweight & skid-resistant
• Cables: JAGWIRE performance cables

Included Accessories

• Reflectors: Handlebar, seat post, front wheel, rear wheel
• Extras: Bottle cage + tools
• Documentation: Manual + warranty card
